Door handles
Framex – hardware from global market leaders
The handles feature either a classic or unique design. Each handle adds an extremely elegant and user-friendly touch to the door. Crafted from aluminum, they can be painted in any color from the RAL palette. Alternatively, you can opt for handles made of stainless steel type 304 – a standard choice that offers greater corrosion resistance in areas exposed to contact with chemicals and marine salt.
Handles made of stainless steel can come in either matte or glossy finishes. There is a wide range of tube shapes and sizes available, for example:
- round;
- semicircular;
- square;
- rectangular;
- flat;
Handles like these, installed on entry doors, are becoming increasingly popular as a modern alternative to traditional door handles.
Framex door handles:
- Available types: one-sided and two-sided;
- Available options: 45 and 90 degrees;
- A wide range of mounting options available (aluminum, PVC, glass, wood);
- Mounting hardware included with the purchase of a two-sided handle;
Stainless steel door handles
Previous image
Next image

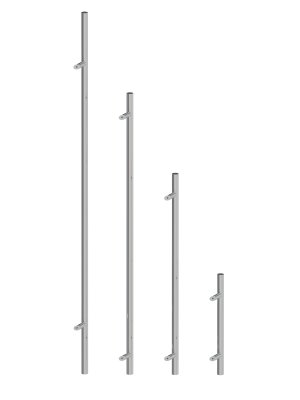

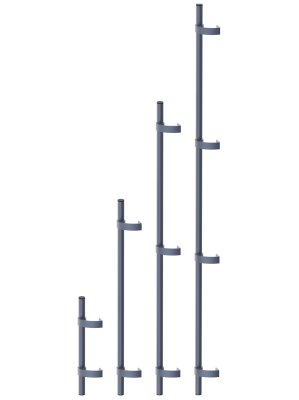

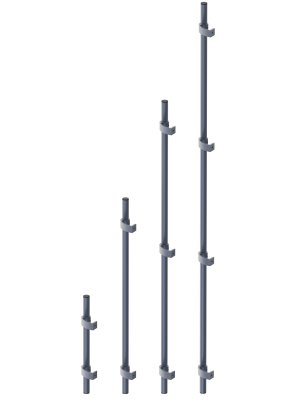

Stainless steel door handle SS
- Can be used both indoors and outdoors.
- Stainless steel handles are ideal for office and commercial use in high-traffic areas.
- The metallic surface of the handle does not change color or fade. It does not fade from UV exposure and is not affected by temperature fluctuations.
| Handle length, mm | 500/1000/1400/1800 |
| Center-to-center distance, mm, mm | 300/800/1200/1300 |
| Handle diameter, mm | 32 |
| Mounting angle | 45° |
| Material | stainless steel |
| Coating | gloss |
Previous image
Next image

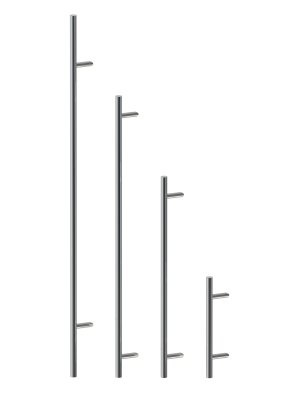

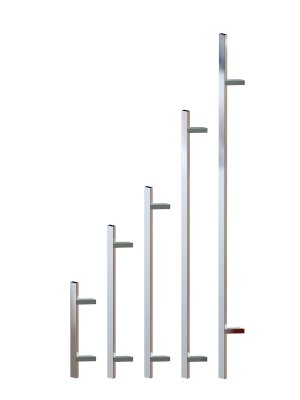

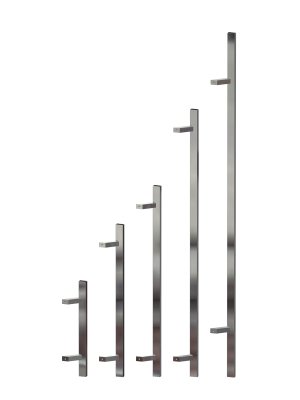

Stainless steel door handle PR
- Can be used both indoors and outdoors.
- Stainless steel handles are ideal for office and commercial use in high-traffic areas.
- The metal surface of the handle does not change color or fade. It does not discolor from UV exposure and is not affected by temperature fluctuations.
| Handle length, mm | 500/800/1000/1400/1800 |
| Center-to-center distance, mm | 300/600/800/1200/1300 |
| Handle projection, mm | 73 |
| Mounting angle | 45° |
| Material | stainless steel |
| Coating | matte |

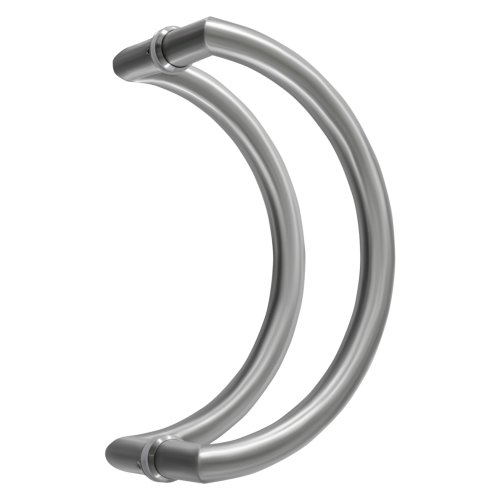

Stainless steel door handle – 178
- It features a sleek design, suitable for installation on glass, wooden, aluminum, plastic, metal, and composite doors.
| Handle dimensions, mm | 25х300 |
| Center-to-center distance, mm | 275 |
| Handle length, mm | 300 |
| Tube diameter, mm | 25 |
| Handle projection, mm | 64 |
| Material | stainless steel |
| Coating | matte |

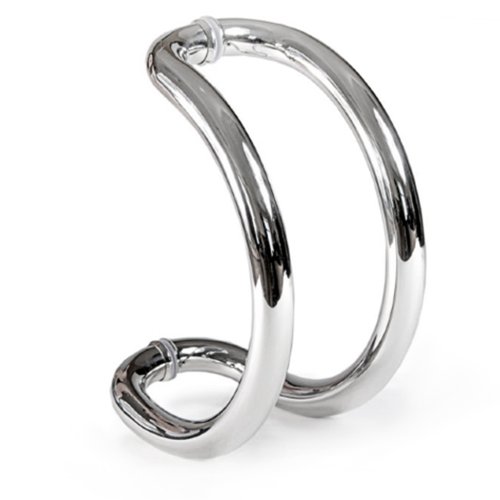

Stainless steel door handle – 179
- It features a minimalist design, suitable for installation on glass, wooden, aluminum, plastic, metal, and composite doors.
| Handle dimensions, mm: | 32х337 |
| Center-to-center distance, mm | 305 |
| Handle length, mm | 337 |
| Tube diameter, mm | 32 |
| Handle projection, mm | 85 |
| Material | stainless steel |
| Coating | gloss |
Stainless steel door handle – 628
- It features a sleek design, suitable for installation on glass, wooden, aluminum, plastic, metal, and composite doors.
| Handle dimensions, mm: | 32х337 |
| Center-to-center distance, mm | 335 |
| Handle length, mm | 370 |
| Tube diameter, mm | 32 |
| Handle projection, mm | 85 |
| Material | stainless steel |
| Coating | gloss |

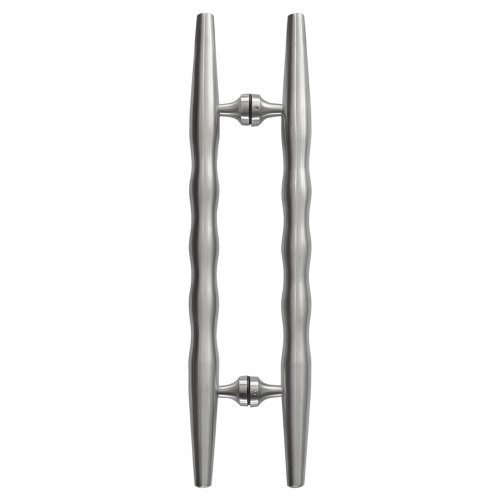

Stainless steel door handle – 655
- It features a minimalist design, suitable for installation on glass, wooden, aluminum, plastic, metal, and composite doors.
| Handle dimensions, mm: | 38х600 |
| Center-to-center distance, mm | 335 |
| Handle length, mm | 600 |
| Tube diameter, mm | 38 |
| Handle projection, mm | 85 |
| Material | stainless steel |
| Coating | gloss |
Previous image
Next image

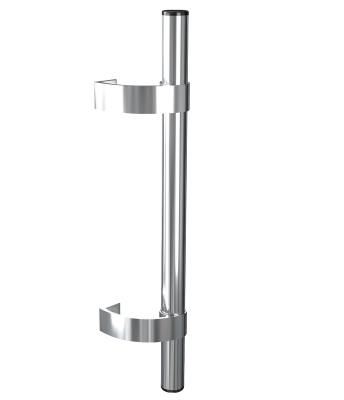

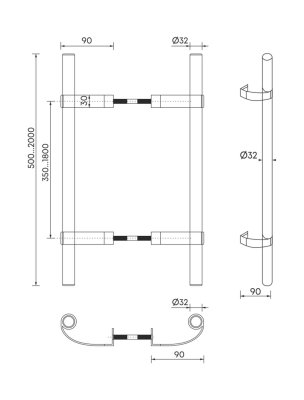

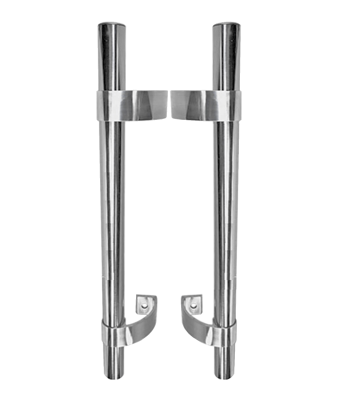

Pull handle Astex R-2 ST
- Pull handle consists of a set of tubes and brackets, equipped with fasteners and end caps in individual packaging.
- It is installed on entrance/interior doors (metal-plastic, aluminum, metal, wooden) in residential and public spaces and is compatible with all types of hardware.
| SKU (Stock Keeping Unit) | P-2 ST |
| Length with end caps, mm | 500, 1000, 1500, 2000 |
| Length without end caps, mm | 490, 990, 1490, 1990 |
| Leaf thickness, mm | 58-90 |
| Tube diameter, mm | 32 |
| Material | stainless steel |
| Coating | gloss |

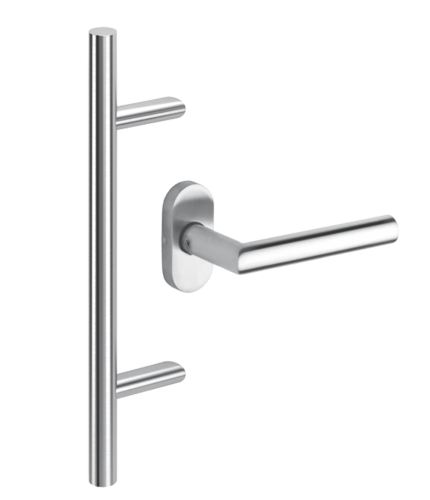

Combined handle (external – one-sided SS pull handle, internal – BELCANTO lever door handle)
External
- Made from stainless steel with an aluminum insert and non-slip coating. Offers a wide range of mounting options (aluminum, PVC, glass, wood). Can be used indoors as well as outdoors. The metal surface of the handle does not change color or fade. It is resistant to UV rays and temperature effects.
Internal
- The handle has undergone testing for 1,500,000 opening cycles. It features a spring mechanism for handle alignment. A crab mechanism is used to secure the handle to the rosette.
| Diameter handle, mm | 32/25 |
| Handle length, mm | 1400/135 |
| Handle projection, mm | 70/70 |
| Material | stainless steel |
| Coating | gloss |
Aluminum door handles
Previous image
Next image

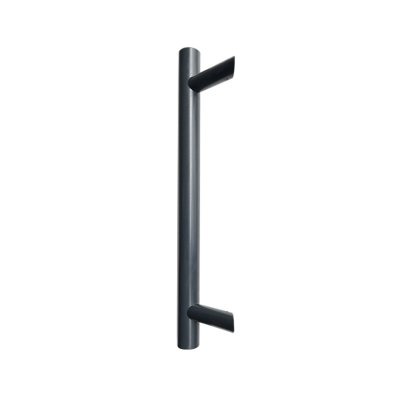

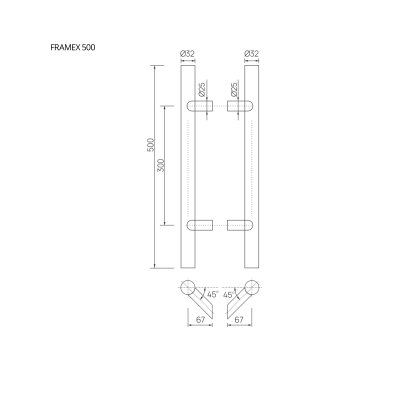

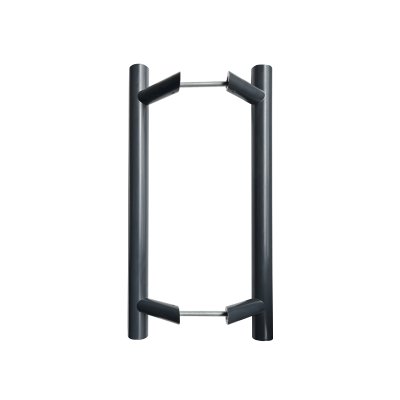

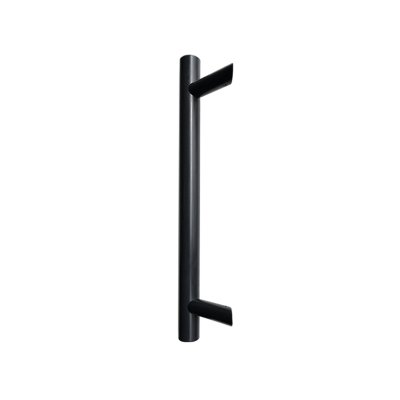

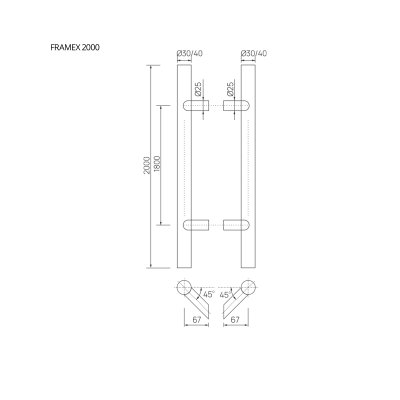

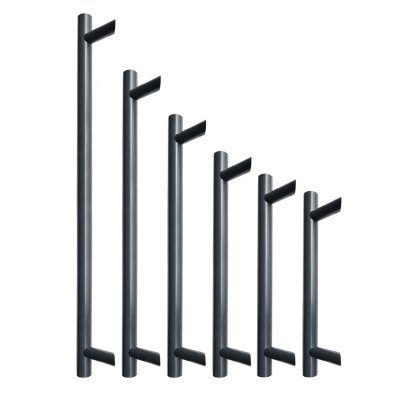

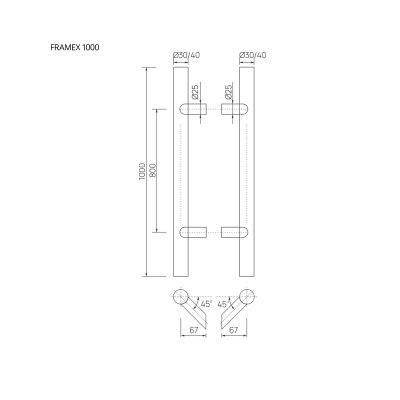

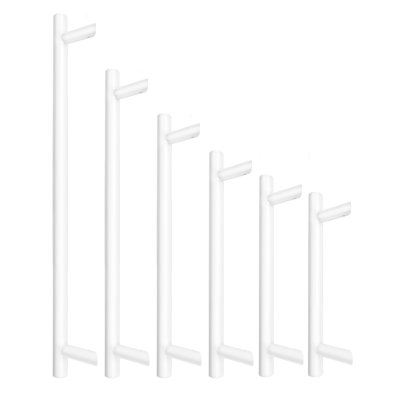

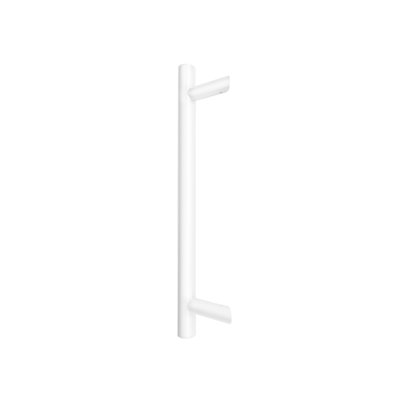

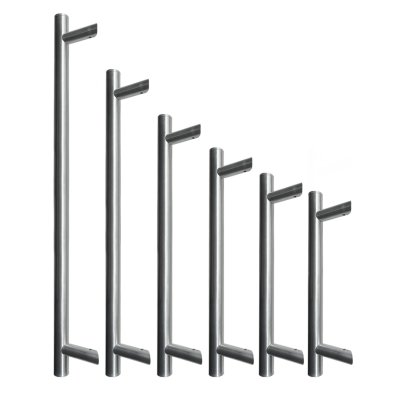

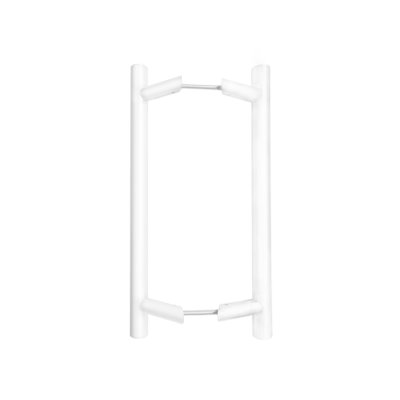

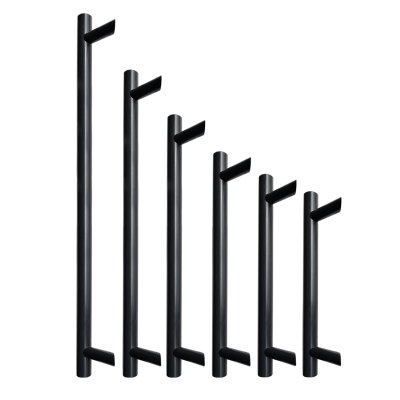

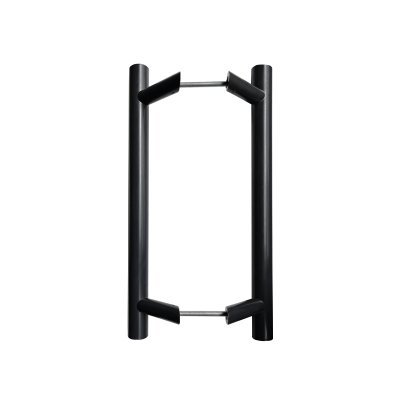

Aluminum door handle FRAMEX
- Double-sided tube handle. The set includes two handles + mounting hardware. Can be used both indoors and outdoors.
- Ideally suited for office and commercial use in high-traffic areas.
- During use, the painted or lacquered surface of the handle is resistant to minor damages and weather conditions (does not fade from UV rays, does not dull, and does not change color due to temperature effects).
| Handle length, mm | 500/600/700/1000/1500/2000 |
| Center-to-center distance, mm | 300/400/500/800/1300/1800 |
| Tube diameter, mm | 32 |
| Handle projection, mm | 67 mm (65 mm + 2 mm lining) |
| Mounting angle | 45° |
| Material | aluminum |
| Coating | chrome*, 9016 white, 9005M matte black, 7016M matte anthracite, and other colors according to the RAL scale** |
* chrome – aluminum coated with impact-resistant varnish.
** painting in any color other than those specified, according to the RAL scale, is made to order after confirming the possibility of purchasing the necessary paint; the price will be calculated individually.
Previous image
Next image

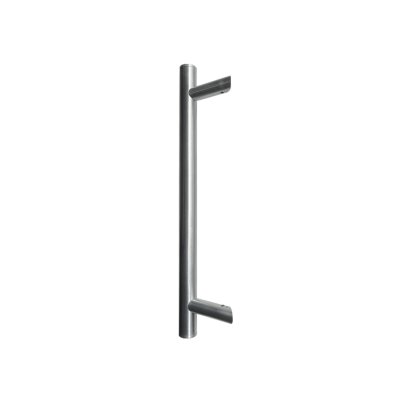

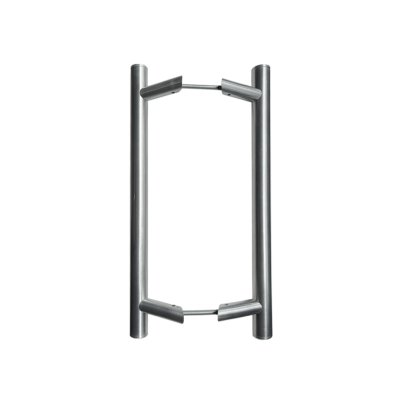

Aluminum door handle Tube
- The door handle is made from high-quality aluminum or stainless steel.
- Suitable for any metal-plastic and aluminum doors with roller locks and closers.
- It is recommended to use in conjunction with cylinder escutcheons.
| Handle length, mm | 500/1000/1500/2000 |
| Center-to-center distance, mm | 350/800/1300/1800 |
| Tube diameter, mm | 33 |
| Handle projection, mm | 92,8 |
| Material | aluminum, stainless steel |
| Coating | other colors according to the RAL scale |

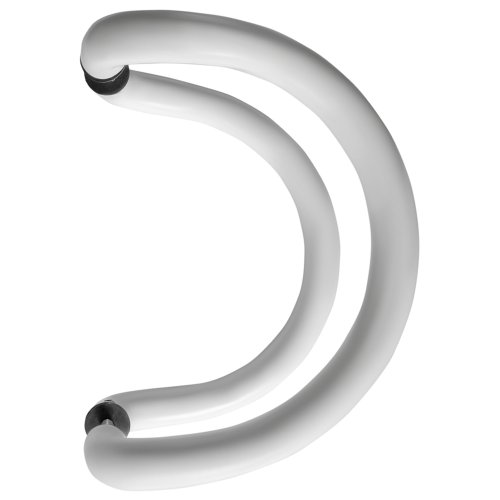

Semi-circular aluminum door handle
- Characterized by elegance, ease of use, and durability. It can be installed in any door design and used both outdoors and indoors.
| SKU (Stock Keeping Unit) | АК-15 |
| Handle dimensions, mm | 15×150 |
| Center-to-center distance, mm | 150 |
| Handle length, mm | 150 |
| Tube diameter, mm | 15 |
| Handle projection, mm | 91 |
| Material | aluminium |
| Coating | other colors according to the RAL scale |
| SKU (Stock Keeping Unit) | 2001 |
| Handle dimensions, mm | 25×200 |
| Center-to-center distance, mm | 200 |
| Handle length, mm | 200 |
| Tube diameter, mm | 25 |
| Handle projection, mm | 91 |
| Material | aluminium |
| Coating | other colors according to the RAL scale |

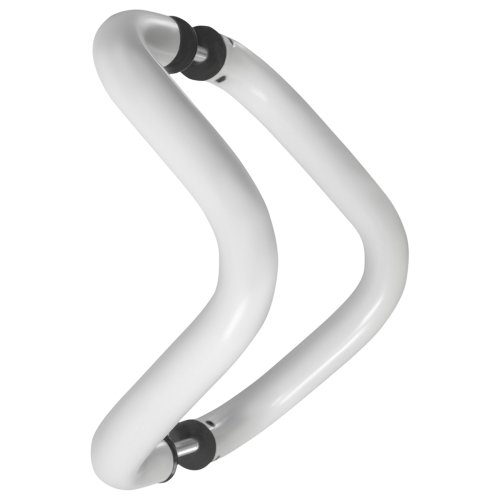

Aluminum triangular door handle
- Features elegance, ease of use and durability. It can be installed in doors of any design and can be used both outdoors and indoors.
| SKU (Stock Keeping Unit) | 5001 |
| Handle dimensions, mm | 25×200 |
| Center-to-center distance, mm | 175 |
| Handle length, mm | 200 |
| Tube diameter, mm | 25 |
| Handle projection, mm | 91 |
| Material | aluminium |
| Coating | other colors according to the RAL scale |
| SKU (Stock Keeping Unit) | 5002 |
| Handle dimensions, mm | 25×250 |
| Center-to-center distance, mm | 250 |
| Handle length, mm | 250 |
| Tube diameter, mm | 25 |
| Handle projection, mm | 91 |
| Material | aluminium |
| Coating | other colors according to the RAL scale |
Pull handle AKPEN P-shaped
- The handle is made from pressed aluminum alloy. The specially designed base mounting ensures quick installation and a strong, durable attachment to the door leaf.
- It is installed on entrance/interior doors (metal-plastic, aluminum, metal, wooden) in residential and public spaces and is compatible with all types of hardware.
| SKU (Stock Keeping Unit) | АК104 |
| Handle length, mm | 330 |
| Distance between the centers of the mounting holes, mm | 300 |
| Handle projection, mm | 85 |
| Diameter Handle, mm | 30 |
| M8x120 screws | 2 pcs |
| Material | aluminium |
| Coating | other colors according to the RAL scale |
Pull handle Astex R-2
- Pull handle consists of a set of aluminum tubes and brackets, equipped with fasteners and end caps in individual packaging.
- It is installed on entrance/interior doors (metal-plastic, aluminum, metal, wooden) in residential and public spaces and is compatible with all types of hardware. It features a smooth glossy surface thanks to a high-quality polymer coating (with UV protection).
| SKU (Stock Keeping Unit) | P-2 |
| Length with end caps, mm | 500, 1000, 1500, 2000 |
| Center-to-center distance, mm | 350, 800, 1300, 1800 |
| Sash thickness, mm | 58-90 |
| Diameter Handle, mm | 32 |
| M8x120 screws | 2 pcs |
| Material | aluminium |
| Coating | other colors according to the RAL scale |
Designer handles

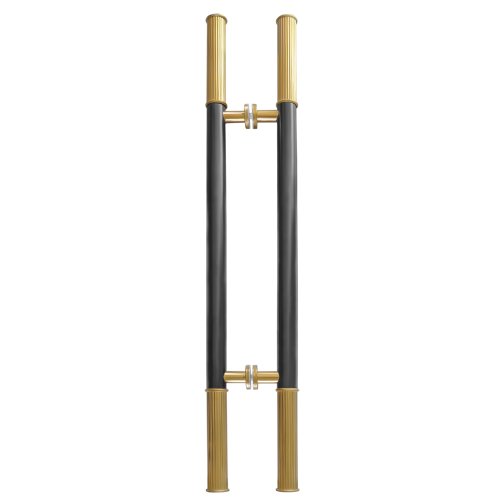

Designer door handle – 402
- Designed for installation on doors: wooden, glass, metal, composite.
| Handle dimensions, mm | 38×1000 |
| Center-to-center distance, mm | 550 |
| Handle length, mm | 1000 |
| Tube diameter, mm | 38 |
| Handle projection, mm | 93 |
| Material | composite |

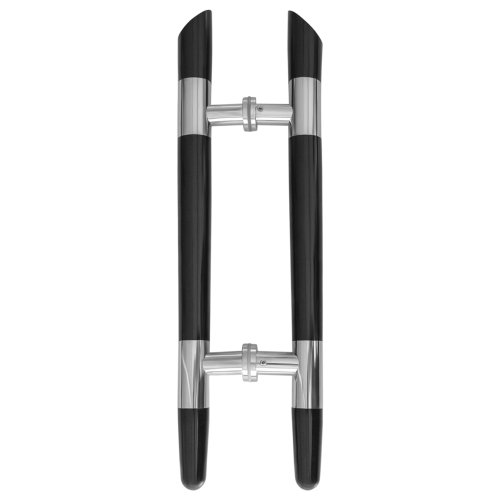

Designer door handle – 195
- Designed for installation on doors: wooden, glass, metal, composite.
| Handle dimensions, mm | 38×540 |
| Center-to-center distance, mm | 285 |
| Handle length, mm | 540 |
| Tube diameter, mm | 38 |
| Handle projection, mm | 75 |
| Material | combined |
Previous image
Next image
Designer door handle – 610
- Distinguished by elegance, ease of use, and durability. It can be installed in doors of any design and used both outdoors and indoors.
| Handle dimensions, mm | 51×950 |
| Center-to-center distance, mm | 520 |
| Handle length, mm | 950 |
| Tube diameter, mm | 51 |
| Handle projection, mm | 80 |
| Material | Brass |
Framex aluminum profile window and door system series
Framex 46M
Without thermal break
Installation depth 46 mm
Filling thickness 8-30 mm
Framex FT 72
With thermal break
Installation depth 72 mm
Filling thickness 26-56 mm
Framex 38
Without thermal break
Installation depth 38 mm
Filling thickness 4-22 mm
Framex FTS 72
72 mm – Frame installation depth
26-56 mm – Filling thickness
3 contours, EPDM – Sealing system
1, 2 – Number of sash constructions
Previous image
Next image
