Cylinder guards
Maximum comfort and protection

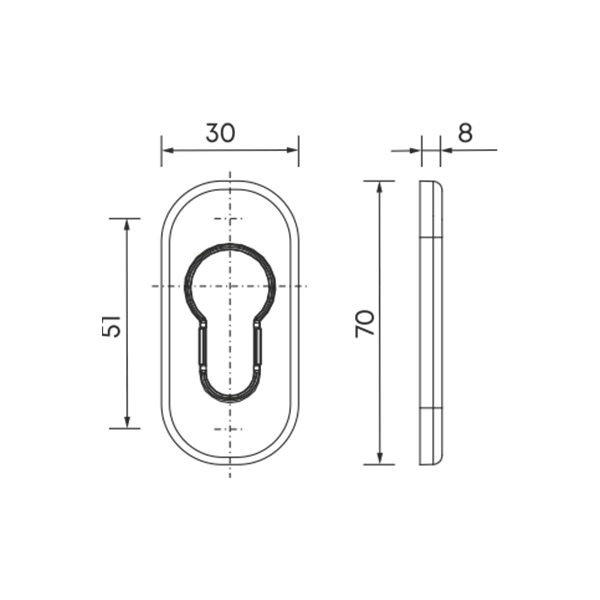

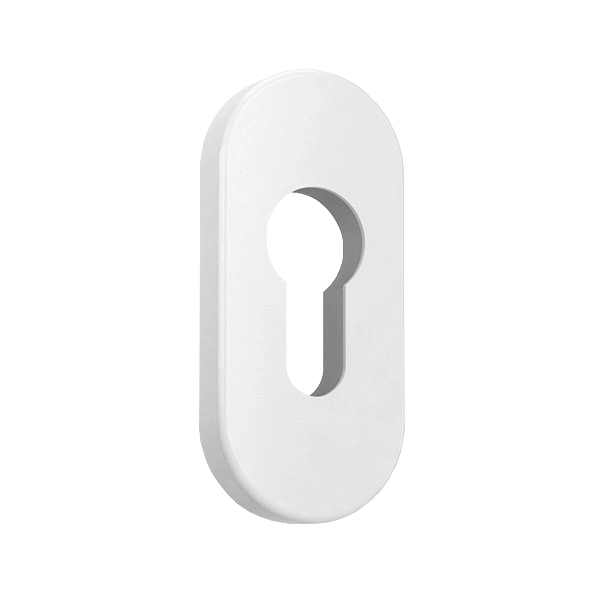

UP cylinder cover
Characteristics:
- Country of origin: Turkey;
- Distance between the centers of the mounting holes, mm: 51;
- Length, mm: 70;
- Width, mm: 30;
- Thickness, mm: 8;
- Material: PVC;
- Color: 9016 white, 9005 black.

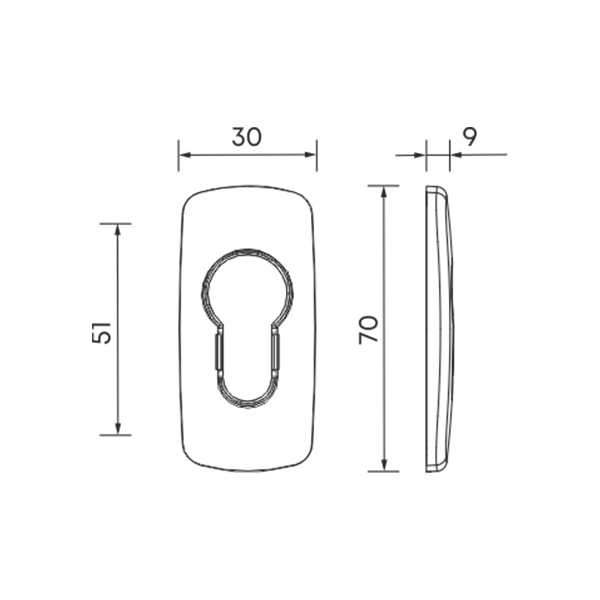

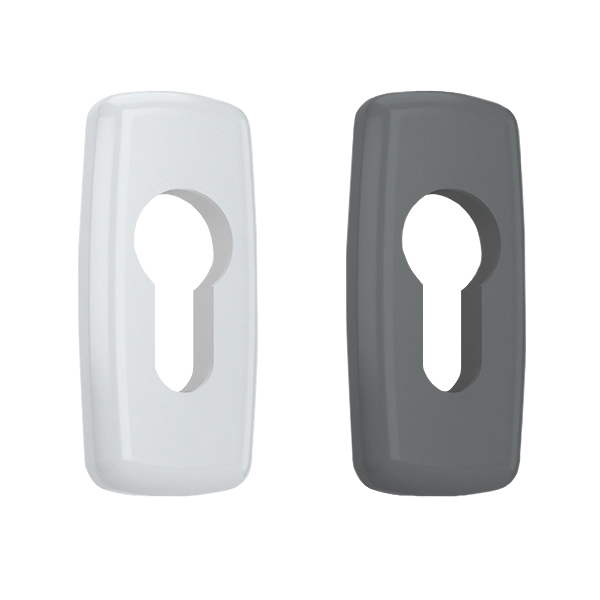

Cylinder cover set
Characteristics:
- Country of origin: Turkey;
- Distance between the centers of the mounting holes, mm:51;
- Length, mm: 70;
- Width, mm: 30;
- Thickness, mm: 9;
- Material: aluminium;
- Color: any according to the RAL scale.

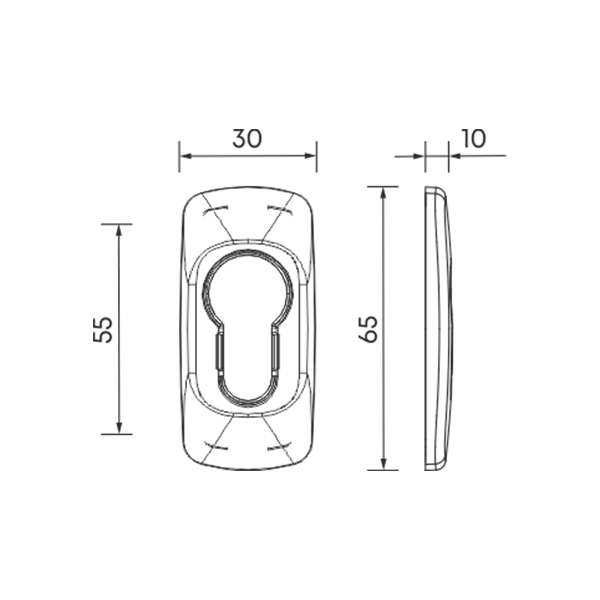

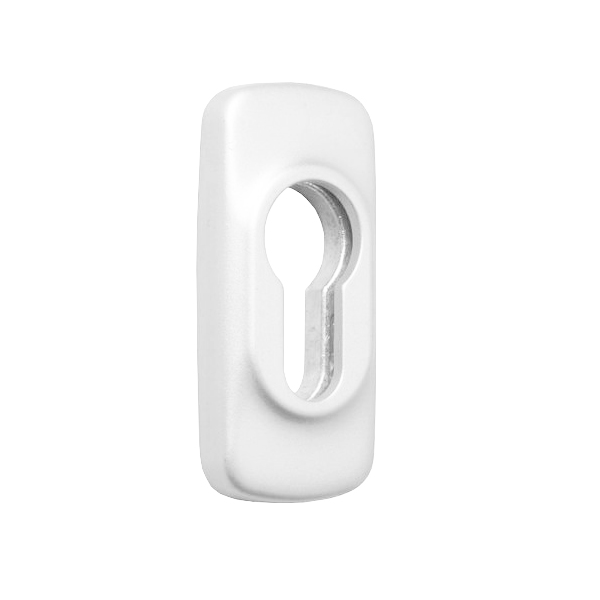

FAPIM 2100C cylinder cover
Characteristics:
- Country of origin: Italy;
- Distance between the centers of the mounting holes, mm: 50;
- Length, mm: 65;
- Width, mm: 30;
- Thickness, mm: 10;
- Material: aluminum/PVC;
- Color: any according to the RAL scale.

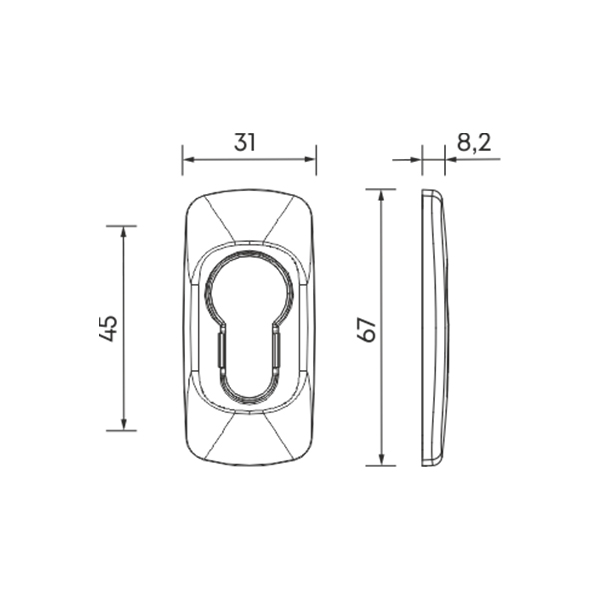

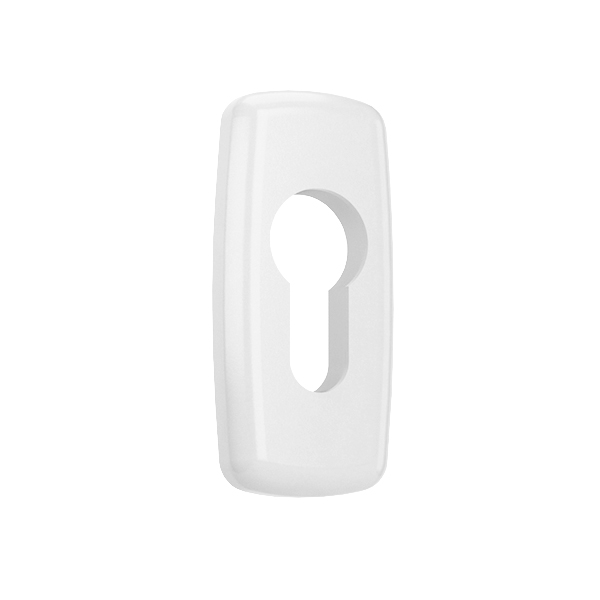

Merkury cover
Characteristics:
- Country of origin: Poland;
- Distance between the centers of the mounting holes, mm: 45;
- Length, mm: 67;
- Width, mm: 31;
- Thickness, mm: 8,2;
- Material: steel/zinc-aluminum alloy;
- Color: any according to the RAL scale.

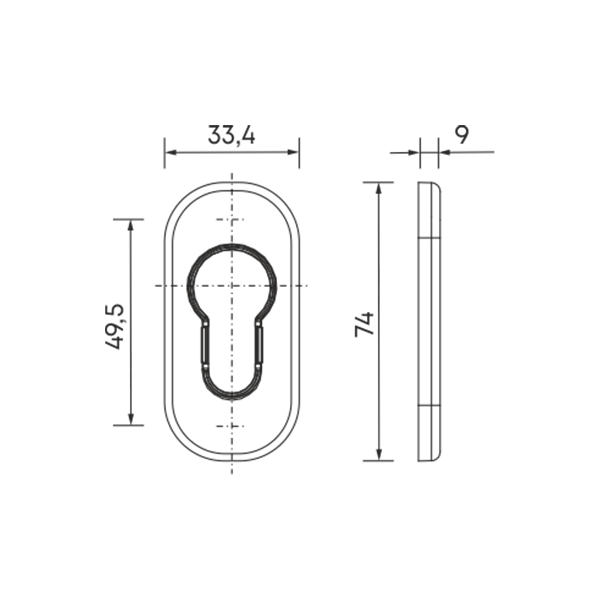

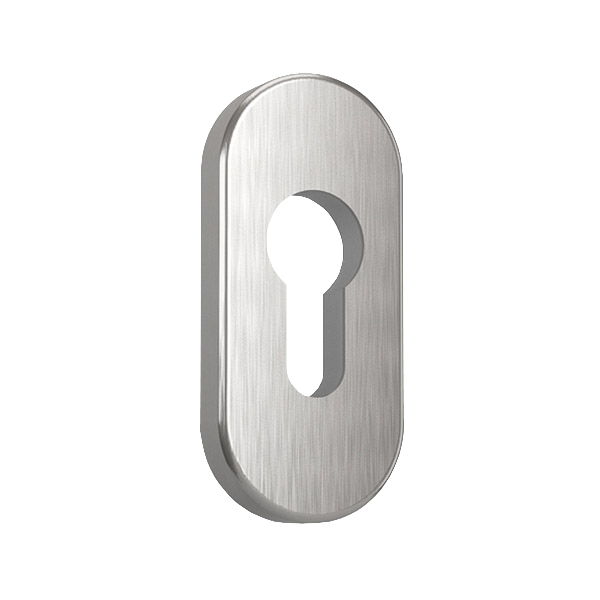

Oval cylinder cover
Characteristics:
- Country of origin: Poland;
- Відстань між центрами отворів кріплення, мм: 49,5;
- Length, mm: 74;
- Width, mm: 33,4;
- Thickness, mm: 9;
- Material: stainless steel;
- Finish: matte.

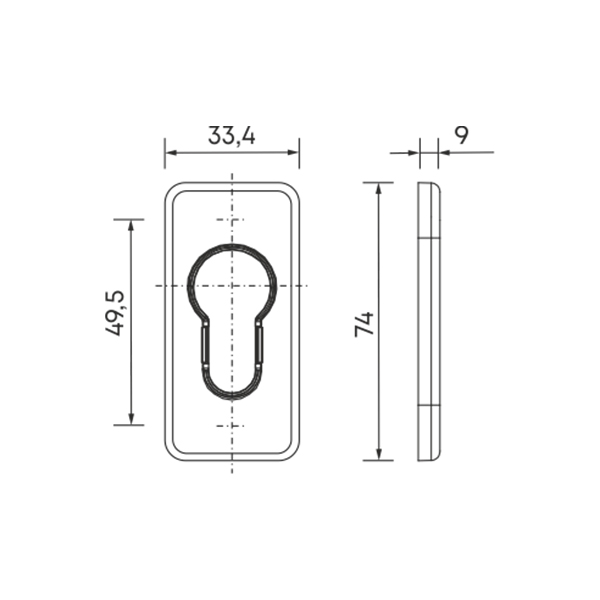

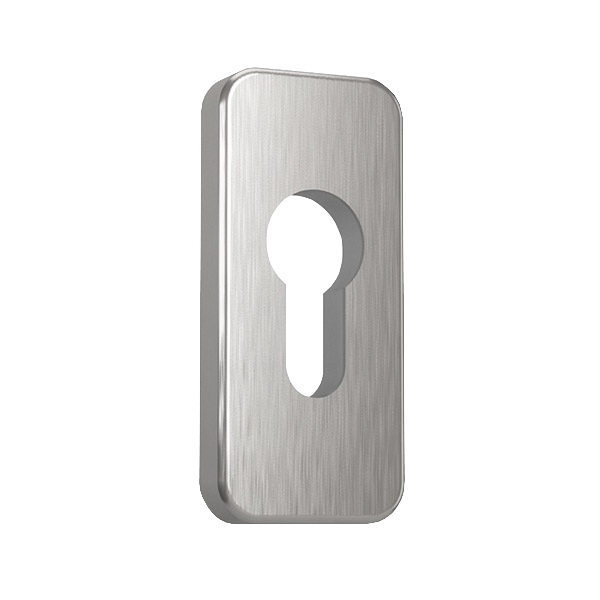

Rectangular cylinder cover
Characteristics:
- Country of origin: Poland;
- Відстань між центрами отворів кріплення, мм: 49,5;
- Length, mm: 74;
- Width, mm: 33,4;
- Thickness, mm: 9;
- Material: stainless steel;
- Finish: matte.
A cylinder cover (core, insert) is an accessory for key-locking doors. In the door leaf, a hole is milled for the cylinder, but it is usually slightly larger than the insert. The cover serves a decorative function and conceals the gap between the cylinder and the door panel.
Structurally, it consists of two plates that protect the lock core from dirt and moisture The covers are suitable for any entry door and can be made from PVC, aluminum, or stainless steel.
A decorative cover on the lock cylinder enhances the aesthetic appeal of the entry door with a finish that mimics bronze, chrome, silver, brass, or gold The powder coating provides increased resistance to mechanical impact and atmospheric precipitation.
