PVC window system
Innovative 7-chamber PVC window system of premium class with enhanced comfort level (Smart Comfort), surpassing traditional energy efficiency standards. Combines timeless design, excellent quality, and high-level reliability.
Number of chambers
7
Installation depth
80 mm
Seal
3 contours, TPE
Filling thickness
24,42,48,50 mm
| Installation depth | 80 mm |
| Visible profile height (frame + sash) | 115 mm |
| Fill thickness | 24,42,48,50 mm |
| Number of profile chambers | 7 |
| Sealing system | 3 contours, TPE |
| Profile thermal transmittance coefficient (Uf) | 1,1 W/m²K |
| Profile thermal resistance coefficient (Rf) | 0,91 m²°С/W |
| max sash size | 1600х2900 mm |
| max frame size | 3000х3000 mm |
| min frame size | 400х400 mm |
| Width of the main chamber | 41,8 mm |
| Glass beads | at a 90° angle |
| Surface | Glossy |
| Hardware | Axis 13 mm |
| Burglary protection | RC2 |
| Installation depth | 80 mm |
| Visible profile height (frame + sash) | 115 mm |
| Fill thickness | 24,42,48,50 mm |
| Number of profile chambers | 5 |
| Sealing system | 2 contours, TPE |
| Profile thermal transmittance coefficient (Uf) | 1,25 W/m²K |
| Profile thermal resistance coefficient (Rf) | 0,91 m²°С/W |
| max sash size | 1600х2900 mm |
| max frame size | 3000х3000 mm |
| min frame size | 400х400 mm |
| Width of the main chamber | 41,8 mm |
| Glass beads | at a 90° angle |
| Surface | Glossy |
| Hardware | Axis 13 mm |
| Burglary protection | RC2 |
PVC profiles of the Framex 80 system are made of PVC-U polyvinyl chloride in accordance with the requirements of DSTU B B.2.7-130. The wall thickness of the profiles corresponds to class B according to DIN EN 12608 / class B according to DSTU B B.2.7-130.
| Framex 80 MD | Framex 80 AD | |
| system type | window and door | window and door |
| Number of profile chambers | 7 | 5 |
| Installation depth | 80 mm | 80 mm |
| Profile thermal transmittance coefficient (Uf) | 1.1 W/m² K | 1.25 W/m² K |
| Profile thermal resistance coefficient (Rf) | 0,91 m²°С/W | |
| Sealing system | 3 contours, TPE | 2 contours, TPE |
| Fill thickness | 24, 42, 48, 50 mm | |
| Glass beads | at a 45° angle | at a 90° angle |
| min frame size | 400х400 mm | |
| max frame size | 3000х3000 mm | |
| max sash size | 1600х2900 mm | |
| Burglary protection | RC2 | |
The Framex 80 MD system offers new opportunities for private and commercial construction.
The profile design ensures high heat transfer resistance. The filling depth of up to 50 mm allows the use of wide double-glazed windows with high thermal and sound insulation parameters.
The modern design of the glazing bead profile with an external angle of 45° gives window structures a stylish look. Three sealing contours ensure maximum thermal insulation parameters and improve the sound and waterproofing properties of the window.

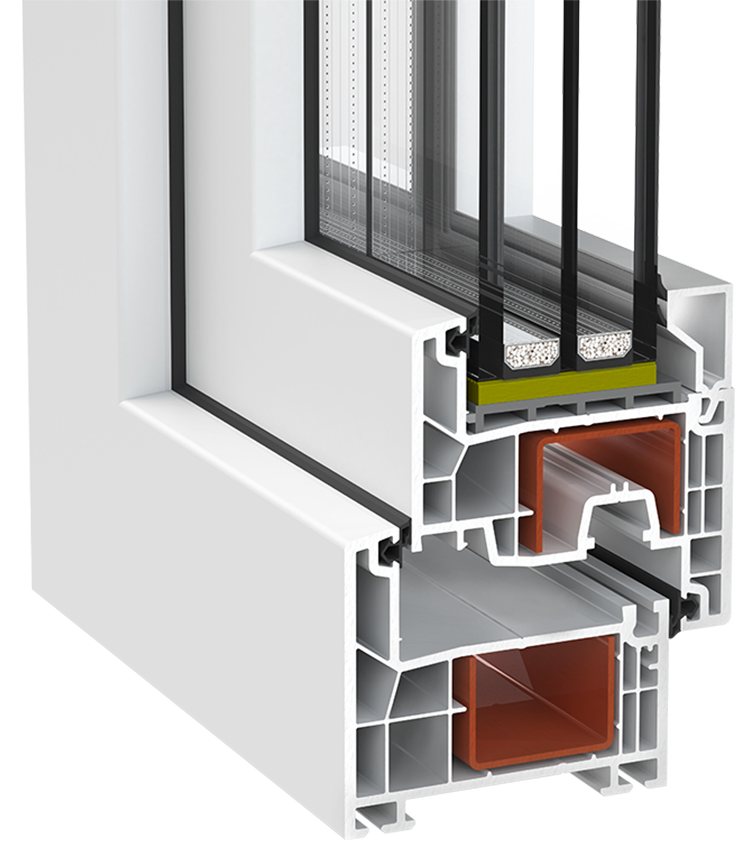

The Framex 80 AD system offers new opportunities for private and commercial construction.
The profile design ensures high heat transfer resistance. It supports filling thicknesses from 24 to 50 mm — from standard to energy-efficient solutions.
Extended range of maximum permissible sash dimensions: 1000×2400 mm. Two sealing contours ensure thermal insulation parameters and improve the sound and waterproofing properties of the window. Up to 9 floors of glazing without connectors compared to the 76 series, where there are restrictions up to 3 floors when using 2 mm reinforcement.
Strength
The use of stronger reinforcement ensures high stability of the structure
Sleek design, similar to aluminum
The sash is in the same plane as the frame, with narrow joints and a new system of glass beads with rectangular edges
The color of the profile can be standard white or colored.
PVC is laminated on both sides – at the request of the customer in the desired lamination color.
Tall, stable, and rigid sashes without the risk of sagging
Glass beads 90°
Rigid reinforcement
Withstands high wind and thermal loads The system maintains stability even with heavy glazing
80 mm – Installation depth
3 Seal contour
7-Multi-chambered profile system
Minimal heat loss and low heating costs in winter
Controlled ventilation of the cavity between the profile groove and the edge of the insulating glass unit is achieved through drainage and ventilation holes located in the outer chambers of the frames and sashes, ensuring effective drainage of condensation and rainwater. The profile design allows moisture to be directed sideways or downwards using specialized drainage profiles.
The leveling grooves of the linings ensure high-quality and fast glazing Supporting profiles and expanders feature enhanced thermal resistance due to increased chamber quantity and additional seals along the groove.
The additional profiles included in the system allow for various options for connecting structures to each other, as well as increasing the width of the frame profiles, which is necessary for strip glazing of facades and spatial glazing of pavilions. The frame profile legs allow for tight connection of a large number of additional profiles, as well as flexible anchor plates for wall mounting.
The width of the reinforcement chambers in the profiles allows for the use of reinforcement profiles with high static characteristics. The reinforcement profiles for the frame, window sash, 50 mm height extender, and supporting profile are identical, which is an important advantage for processors. The profile system allows for the use of standard hardware from various manufacturers, both in regular and anti-burglary configurations.
The anodized aluminum Framex cover for the PVC threshold of the 80 series (balcony door) is a durable and aesthetic element that serves both protective and decorative functions. Made from anodized aluminum, it is resistant to corrosion and mechanical damage.
The grooved surface minimizes the visibility of scratches and scuffs, maintaining a neat appearance even after long-term use. It is ideal for installation on the threshold of a balcony door, enhancing the durability and lifespan of the construction.
The Framex mullion end cap is a functional hardware element designed for the neat finishing of the mullion end. It provides an aesthetic completion of the construction, prevents dust and moisture from entering the interior, and ensures tight contact between the sash and the frame, eliminating drafts.
Made of high-quality plastic, it is easy to install and highly durable in use. Perfectly compatible with Framex profile systems.
