Underwindowsil profile
A special element that attaches to the bottom part of the window
The underwindowsil profile in window constructions is used for mounting the windowsill and drip, as well as for transporting the structures.

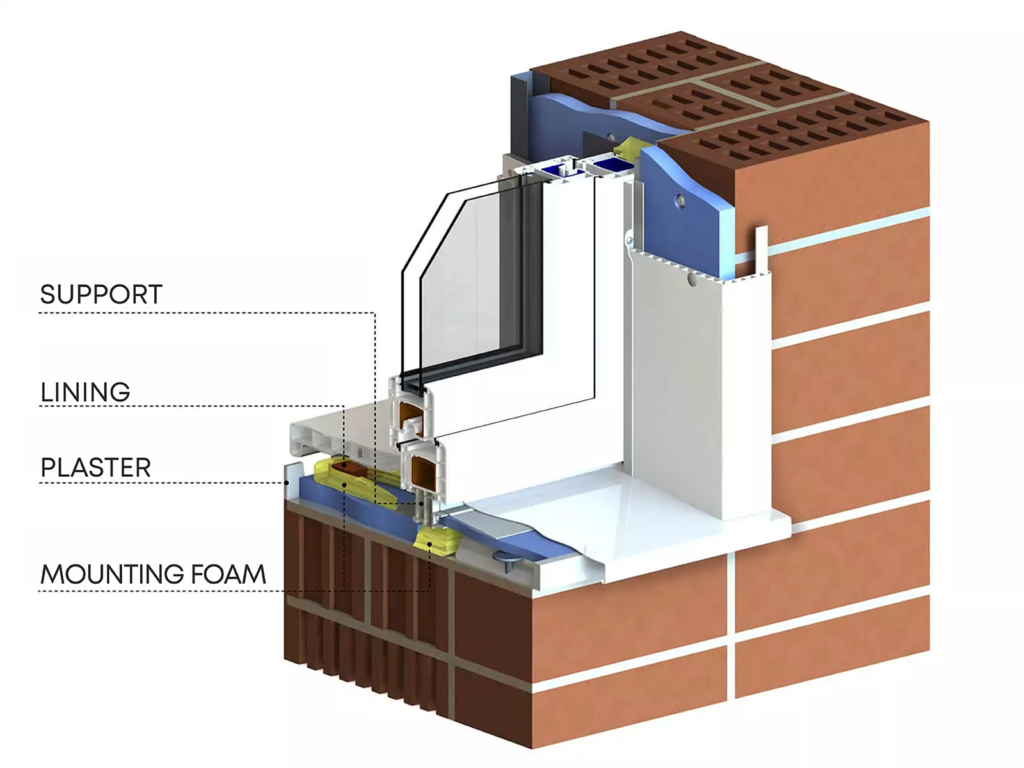

The underwindowsil profile bears all the load from the metal-plastic window It is fixed to the window frame using screws, and the gaps between the sill, the drip, and the support profile are filled with mounting foam.
Why is a underwindowsil profile necessary?
The purpose of using a mounting profile is to connect the windowsill, the plastic window, and the drip edge into a single unit. The mounting profile is attached to the PVC structure for ease of transportation What does this convenience entail?
- During the transportation of a plastic window, deformation of the structure's elements can occur However, the mounting profile prevents damage to the structure.
- During the installation of window sills and drips, thanks to the underwindowsil profile, no additional holes need to be made in the frame.
Underwindowsil profile Framex

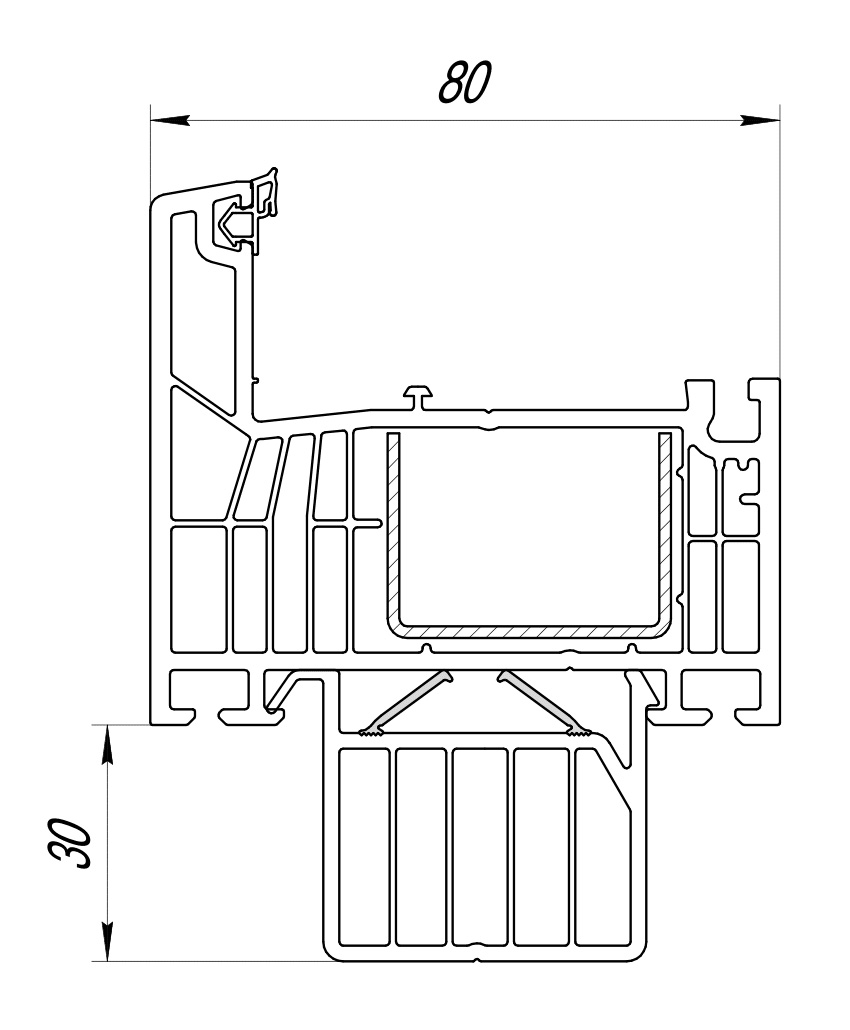

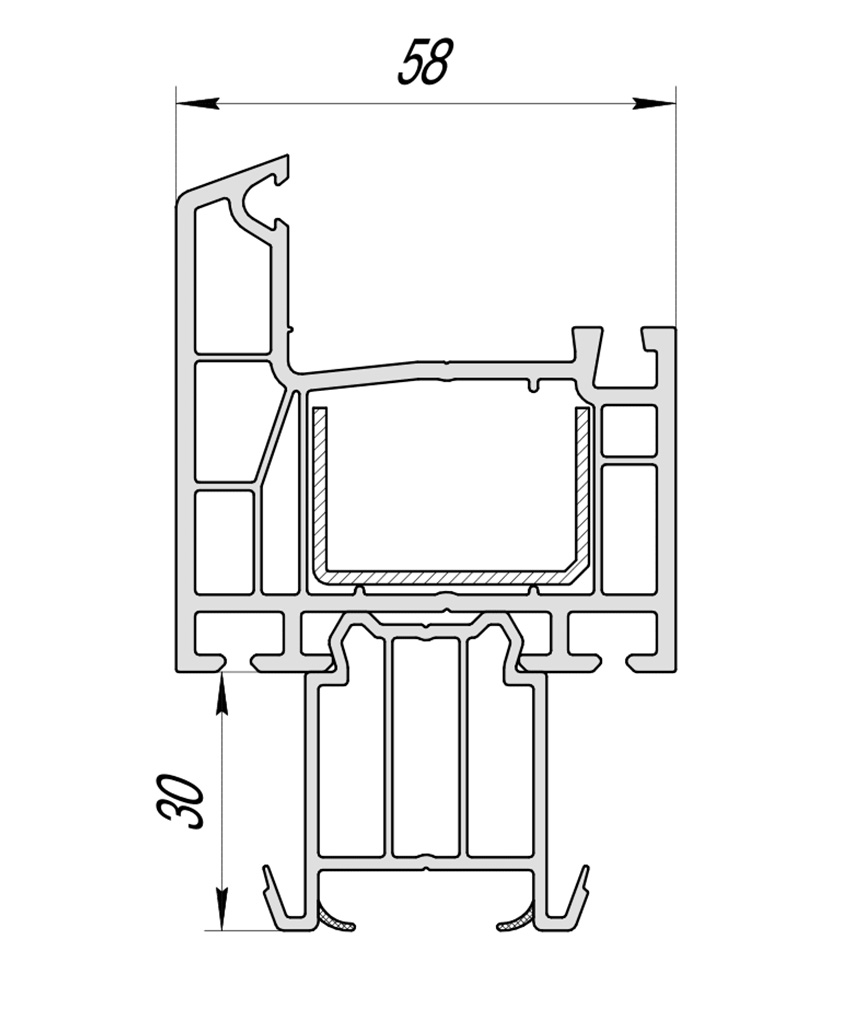

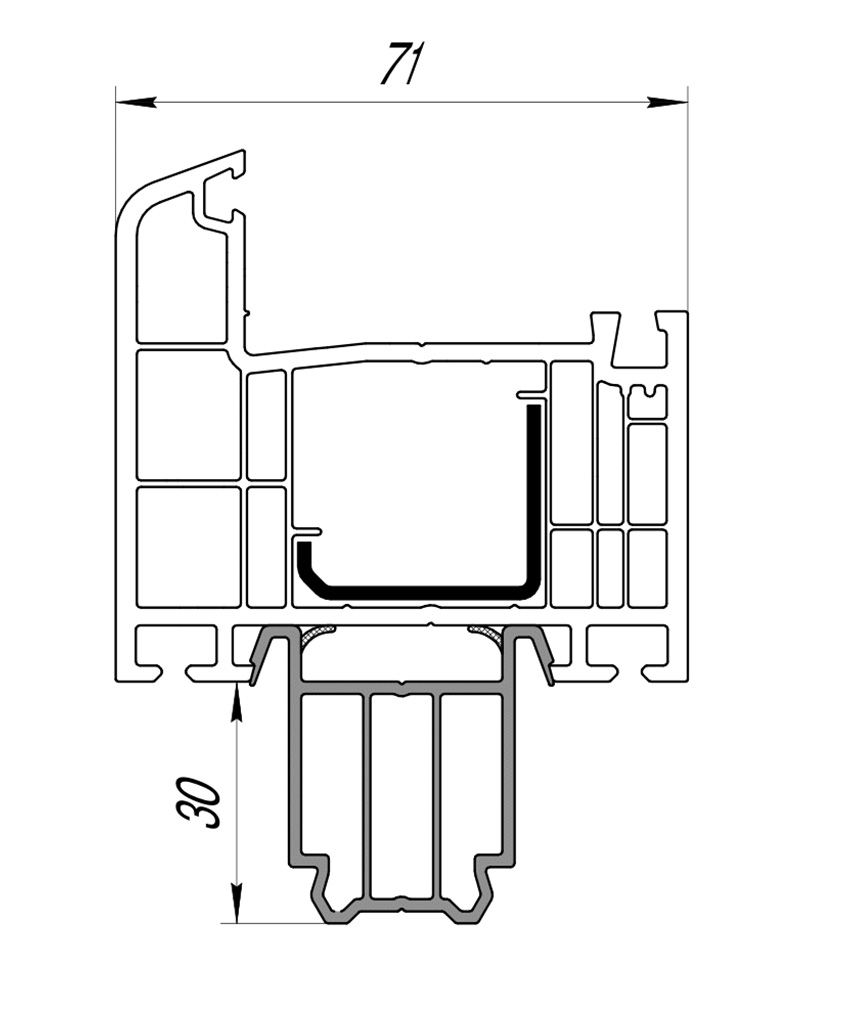

To improve the thermal insulation of window structures, support profiles with a seal are used In the product range of TM Framex, there are support profiles for each PVC system.
