Comparison Tables of Framex Systems

Framex offers a comprehensive range of professional solutions for the production of exclusive translucent structures

	PVC window systems			PVC door systems
Profile	FRAMEX 80	FRAMEX 71	FRAMEX 58	FRAMEX 80	FRAMEX 71	FRAMEX 58

System Type	Window System	Window System	Window System	Door System	Door System	Door System
Frame Installation Depth, mm	80	71	58	80	71	58
Sash Installation Depth, mm	80	71	58	80	71	58
Number of Seal Contours	3	2	2	3	2	2
Number of Chambers (Sash/Frame)	7/7	6/6	4/4	7/4	6/3	4/3
Profile Thermal Transmittance Coefficient, W/m²K	1.1	1.2	1.6	1.1	1.2	1.6
Min. Structure Dimensions	400х400	400х400	400х400	500х1000	500х1000	500х1000
Max. Structure Dimensions	3000х3000	3000х3000	3000х3000	3000х3000	3000х3000	3000х3000
Max. Sash Dimensions	1600х2400	1600х2400	1600х2400	1400х3000	1600х2400	1400х3000
Filling Thickness, mm	42, 50	24,32,42	4, 24,32	42, 50	24,32,42	4,24,32
Structure Airtightness	High	High	Medium	High	High	Medium
Design	Straigh	Rounded	Rounded	Straigh	Rounded	Rounded
Seal Color	Black	Black, Gray	Black, Gray	Black	Black, Gray	Black, Gray
Color	White, Lamination	White, Anthracite in Mass, Lamination	White, Lamination	White, Lamination	White, Anthracite in Mass, Lamination	White, Lamination
Burglary Protection	RC2	RC2	RC2	RC2	RC2	RC2

	PVC Sliding Systems
Profile	FRAMEX HS 170	FRAMEX ISS 147	FRAMEX 71	FRAMEX 71 «fold-sliding»	FRAMEX PS 74	FRAMEX PS 60

System Type	Lift-and-Slide	Parallel-Slide	Tilt-and-Slide	fold-sliding	Sliding	Sliding
Frame Installation Depth, mm	170	147	71	71	74	60
Sash Installation Depth, mm	70	76	71	71	52	42
Number of guides, pcs.	1	1	1 (Monorail)	1 (Monorail)	2	2
Visible profile part (frame + sash)	182	145	117	117	131/140	113
Threshold height	65	74	66	126	60	56
Filling Thickness, mm	40	50	24,32,42	24,32,42	30	20
Number of profile chambers (frame/sash), pcs.	3/5	6/4	6/6	6/6	3/3	3/2
Seal type	TPE	TPE	TPE	TPE	felt	felt
Number of sealing circuits, pcs.	2	2	2	2	2	2
Profile Thermal Transmittance Coefficient, W/m²K	1.5	1.5	1.2	1.2	-	-
Water Resistance	7А	8А	8А	8А	6А	6А
Air Permeability	3	4	3	3	2	2
Wind Load Resistance	С4/В5	С4/В5	С4	С4	-	-
Min. Sash Dimensions (Width/Height)	1000х500	710х600	670х930	450х600	500х1500	500х1500
Max. Sash Dimensions	3000х3000	2000х2500	2000х2700	1200х2400	1000х2100/2400	800х1850
Max. Structure Width, mm	6000	6000	6000	5500	6000	4000
Max. Sash Weight, kg	400	200	130	80	180	120
Number of Sashes in Structure	1,2	1,2	1,2	3,4,5,6,7	2,3,4,6	2,3,4,6
Handles (Type)	Rotary	Rotary	Rotary	Rotary	pushing/double sided push handle	pushing
External Locking	Lock	Lock	Lock	Lock	Lock	no
Burglary Protection	Basis	RC2	RC2	RC2	Basis	Basis
Color	White, Lamination	White, Lamination	White, Anthracite in Mass, Lamination	White, Anthracite in Mass, Lamination	White, Lamination	White, Lamination

	Aluminum Window Systems

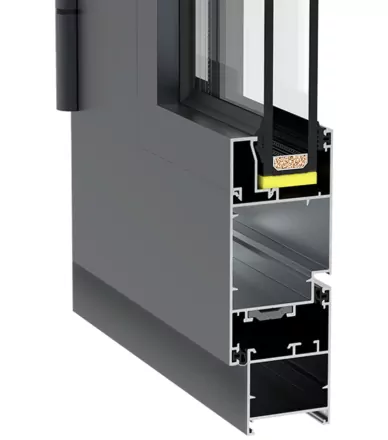

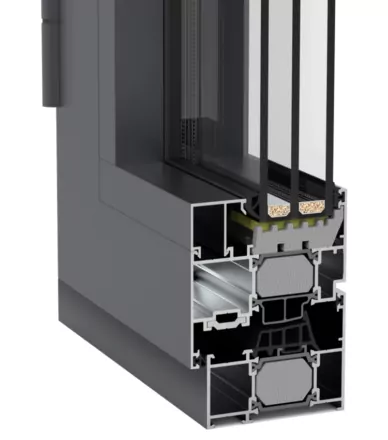

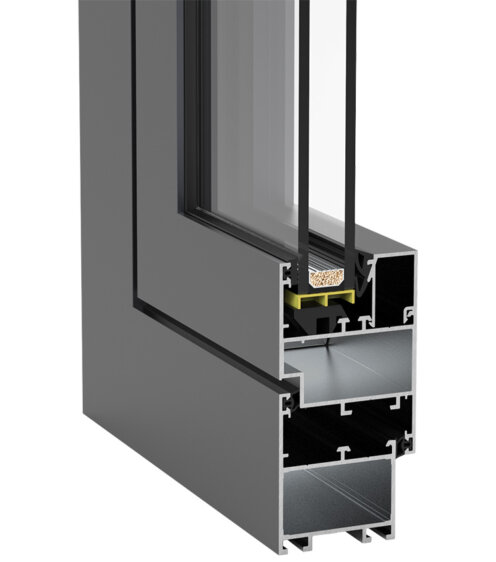

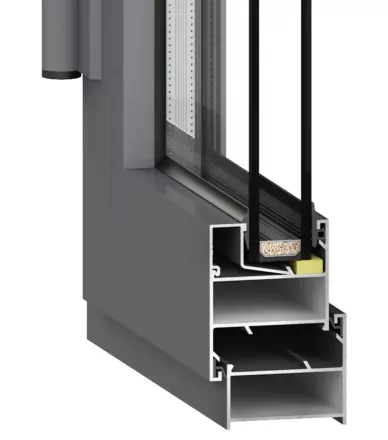

Profile	FRAMEX FT 72	FRAMEX 46M	FRAMEX 38	FRAMEX 10

System Type	Window System	Window System	Window System	Window System
Frame Installation Depth, mm	72	46	38	45
Sash Installation Depth, mm	80,4	54	46	45
Number of Seal Contours	3	2	2	2
Thermal Break Availability		-	-	-
Thermal insert, mm	34	-	-	-
Profile Thermal Transmittance Coefficient, W/m²K	1.4		-	-
Hardware	Europaz V.01 “Type 1” / axle 9 mm	Europaz V.01 “Type 1”	Europaz V.01 “Type 1”	-
Installation in facade systems
Sealing material	EPDM	EPDM	EPDM	EPDM
Filling Thickness, mm	26-56	8-30	4-22	4-22
Structure Airtightness	High	High	High	Medium
Design	Straigh	Straigh	Straigh	Straigh
Alloy	6063 T6	6063 T6	6063 T6	6063 T6
Color	Powder Coating (RAL Scale)	Powder Coating (RAL Scale)	Powder Coating (RAL Scale)	Powder Coating (RAL Scale)
Burglary Protection	RC2	RC2	RC2	Basis

	Aluminum Door Systems

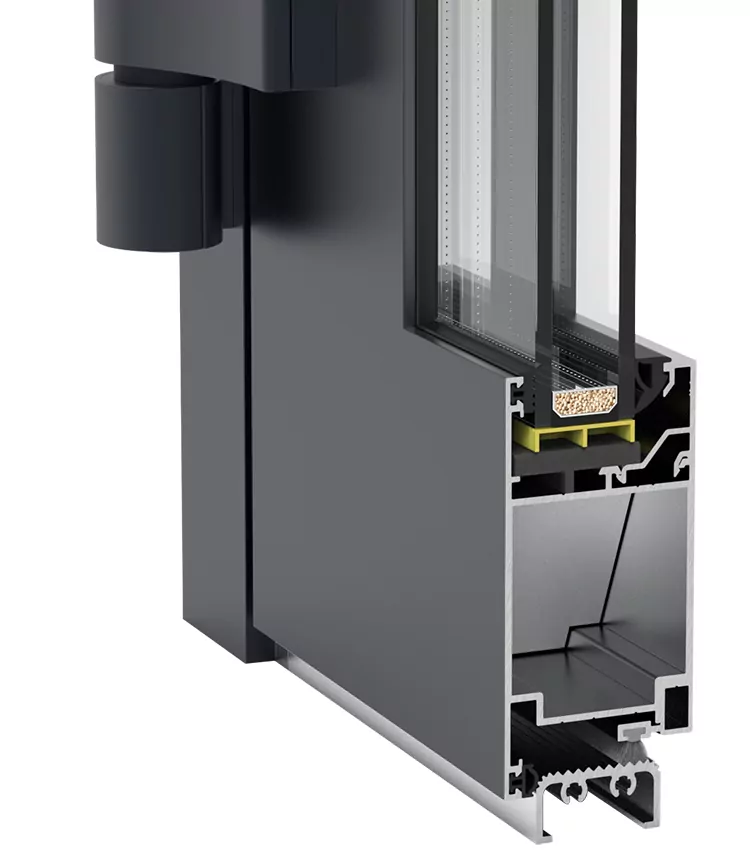

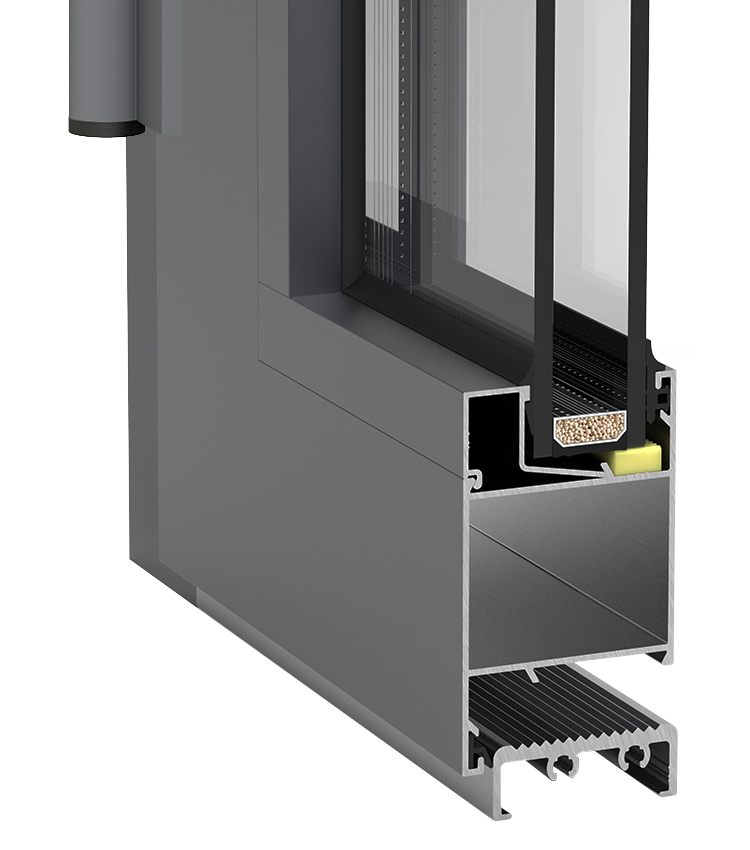

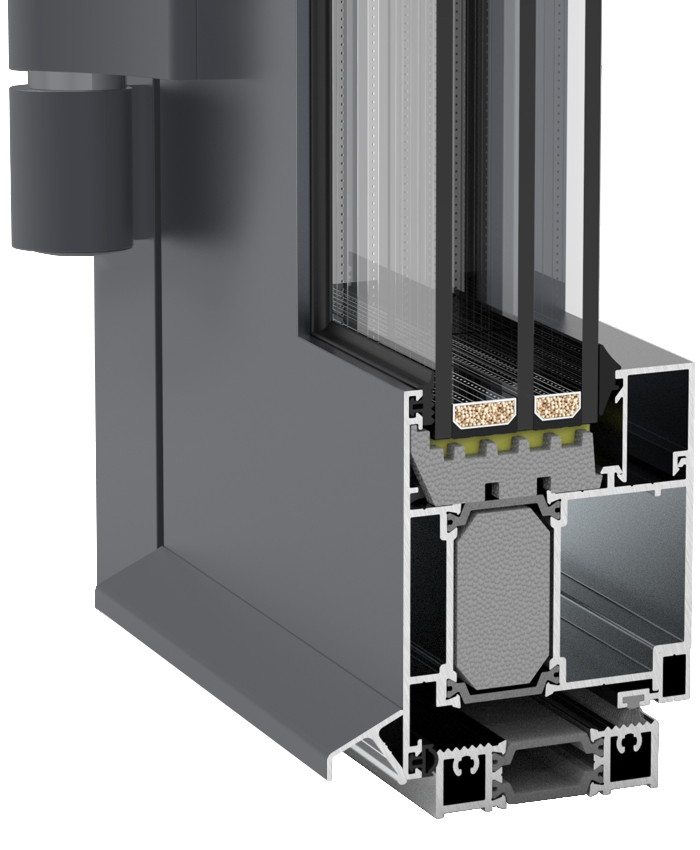

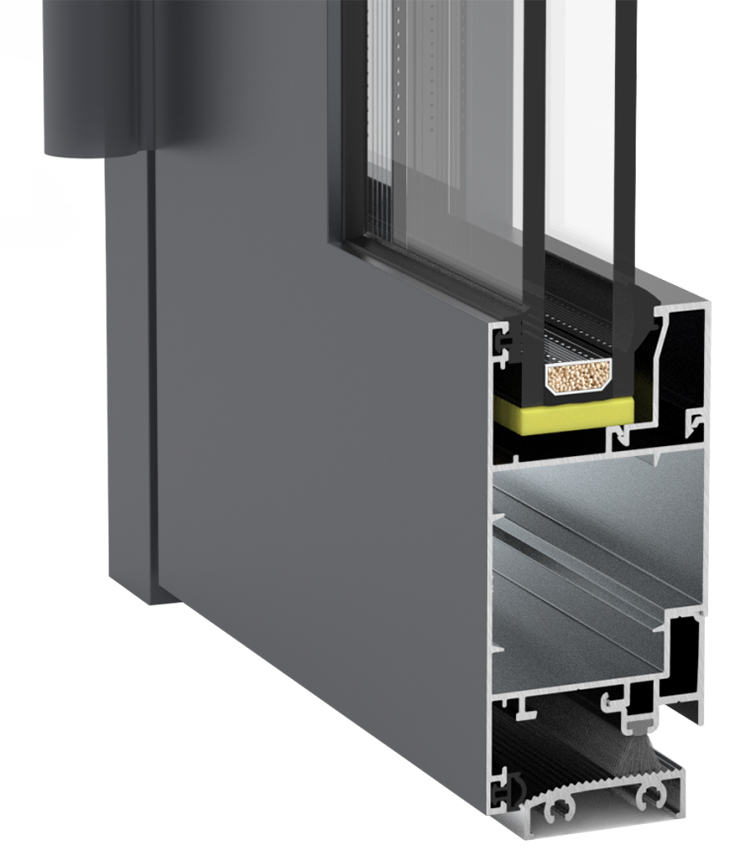

Profile	FRAMEX FT 72	FRAMEX 46M	FRAMEX 38	FRAMEX 10

System Type	Door System	Door System	Door System	Door System
Frame Installation Depth, mm	72	46	38/46	45
Sash Installation Depth, mm	72	46	46	45
Number of Seal Contours	2	2	2	2
Thermal Break Availability		-	-	-
Thermal insert, mm	28	-	-	-
Profile Thermal Transmittance Coefficient, W/m²K	1.6	-	-	-
Hardware	-	-	-	-
Installation in facade systems
Sealing material	EPDM	EPDM	EPDM	EPDM
Filling Thickness, mm	26-56	6-30	4-22	4-22
Structure Airtightness	High	High	High	Medium
Design	Straigh	Straigh	Straigh	Straigh
Alloy	6063	6063	6063	6063
Color	Powder Coating (RAL Scale)	Powder Coating (RAL Scale)	Powder Coating (RAL Scale)	Powder Coating (RAL Scale)
Burglary Protection	RC2	RC2	RC2	Basis

	Aluminum Sliding Systems
Profile	FRAMEX FTS72	FRAMEX SL28	FRAMEX S22	FRAMEX SL 3000	FRAMEX HS 180

System Type	Parallel-Slide	Sliding	Sliding	Sliding	Lifting and sliding
Frame Installation Depth, mm	72	45/81	60/90	64/93/122/151	180/186
Sash Installation Depth, mm	80,4	28	22	22	80
Number of guides, pcs.	1	2,3	2,3	2,3,4,5	1,2
Visible profile part (frame + sash)	140	95	75	95	126,9
Threshold height	72	43	12/35	10/34,5	52,9/56,9
Filling Thickness, mm	26-56	4-10,16-22	4,6	8,20	34-64
Thermo-bridge	34	-	-	-	34,46
Seal type	EPDM	felt	felt	felt	EPDM
Number of sealing circuits, pcs.	3	2	2	2	2
Profile Thermal Transmittance Coefficient, W/m²K	1.4	-	-	-	0,8
Water Resistance	-	-	-	-	-
Air Permeability	-	-	-	-	-
Wind Load Resistance	A	-	-	-	-
Min. Sash Dimensions	500х1000	400х600	300х500	600х800	800x2100
Max. Sash Dimensions	1680х2380	1000х2400	900х2100	1300х3000	up to 3100
Max. Structure Width, mm	6000	6000	5400	12000	up to 8000
Max. Sash Weight, kg	150	50	30	100	400
Number of Sashes in Structure	1,2	2,3,4,5,6	2,3,4,5,6	2,3,4,5,6,7,8,9,10	1,2
Handles (Type)	waybill	Mortise	Mortise	Mortise, waybill	Mortise, waybill
External Locking	Lock	Lock	Lock	Lock	-
Burglary Protection	RC2	-	-	-	RC2
