Thermally Insulated Profiles by Framex
for the F50 Facade System
Framex – the best partner and expert in the window industry
Features of the material
Thermally insulated profiles are made from environmentally friendly expanded polyethylene, which can be recycled multiple times without loss of quality and retains its properties in a temperature range from -40°C to +80°C, making it an ideal thermal and sound insulation building material.
Products made of expanded polyethylene are resistant to silicones, moisture, chemicals, salts, organic solvents, and alcohol and/or gasoline-based substances, making them suitable for any climate.
Technical Characteristics
|
Characteristic
|
Testing Method
|
Unit of Measurement
|
Value
|
|---|---|---|---|
|
Density Tolerance
|
ISO 845
|
kg/m³
|
30 ± 5
|
|
Thermal Conductivity (λ)
|
EN 12667
|
W/mK
|
0,038
|
|
Fire Safety Class
|
EN 13501
|
-
|
Class «E»
|
|
Water Absorption after 7 Days
|
ISO 2896
|
Percentage.%
|
< 2
|
|
Material Group
|
Appearance
|
-
|
Non-woven PE
|
|

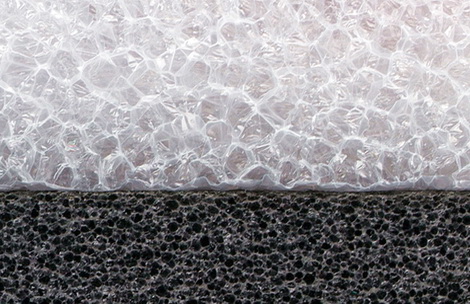

Cell Structure
|
Appearance
|
-
|
Closed Cell Structure
|
|
Temperature Range
|
Internal
|
°C
|
-40 - +80
|
|
Color
|
Appearance
|
-
|
Dark Gray
|

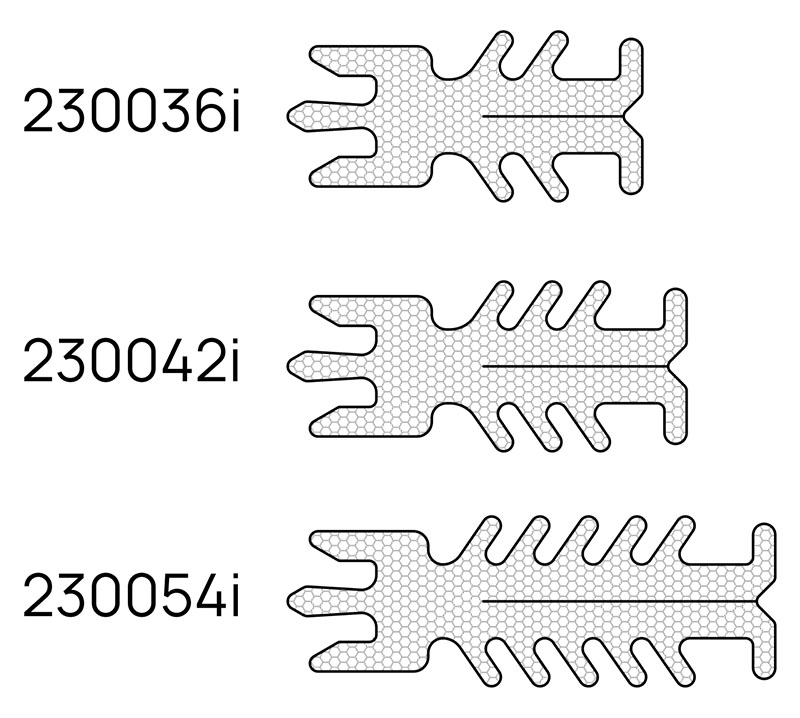

In the thermally insulated profiles 230036i and 230042i for the Framex F50 system, the design has been updated for convenience of use A new item has been added – 230054i.
Advantages of the new geometry
- They have a higher density.
- The special notch for self-tapping screws allows for a more coaxial installation of the screw into the nose of the uprights and rails.
- They have a more aesthetic appearance And although this is not so significant for the finished structure, it is more pleasant to work with them.
- The new geometry promotes more economical use of sealant in structural glazing.
